Xtreme Sedona 48 Volt Step-Through Full Suspension Electric Mountain Bicycle

Xtreme Sedona 48 Volt Step-Through Full Suspension Electric Mountain Bicycle

Regular price
Sale Price: $1,949.00
Regular price
Original Price: $3,249.00
Sale price
Sale Price: $1,949.00
Save: $1,300.00 (40%)

✓ #1 Authorized Retailer

✓ No Sales Tax On Your Order

✓ Lowest Price Guarantee

✓ Place An Order? Call Us: (855) 886-1488

View Cart

really good ebikes x-treme authorized dealer

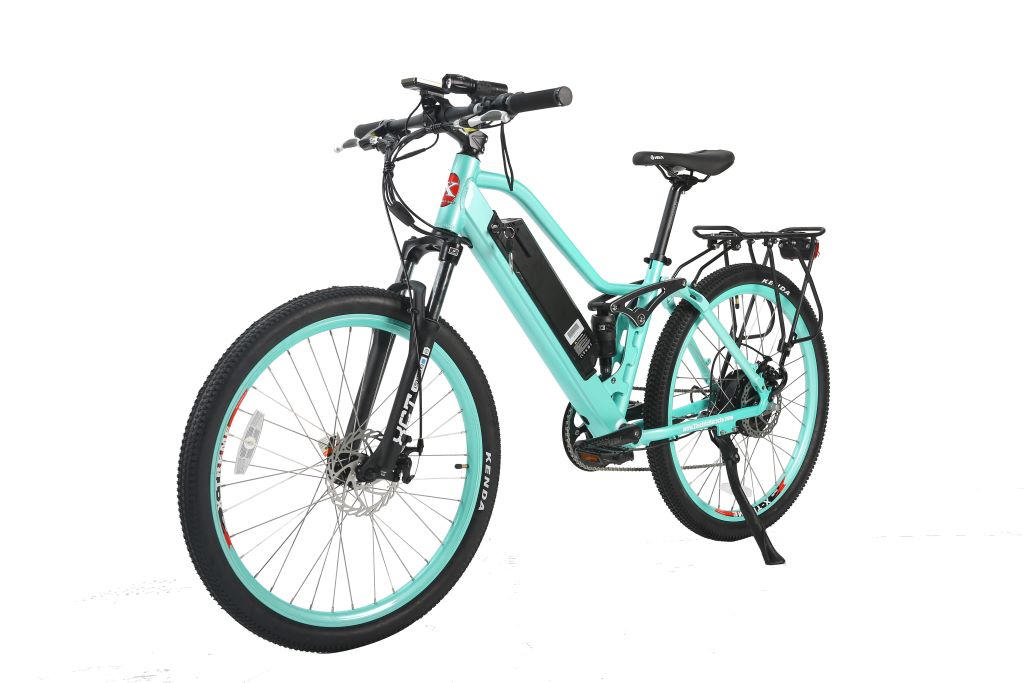

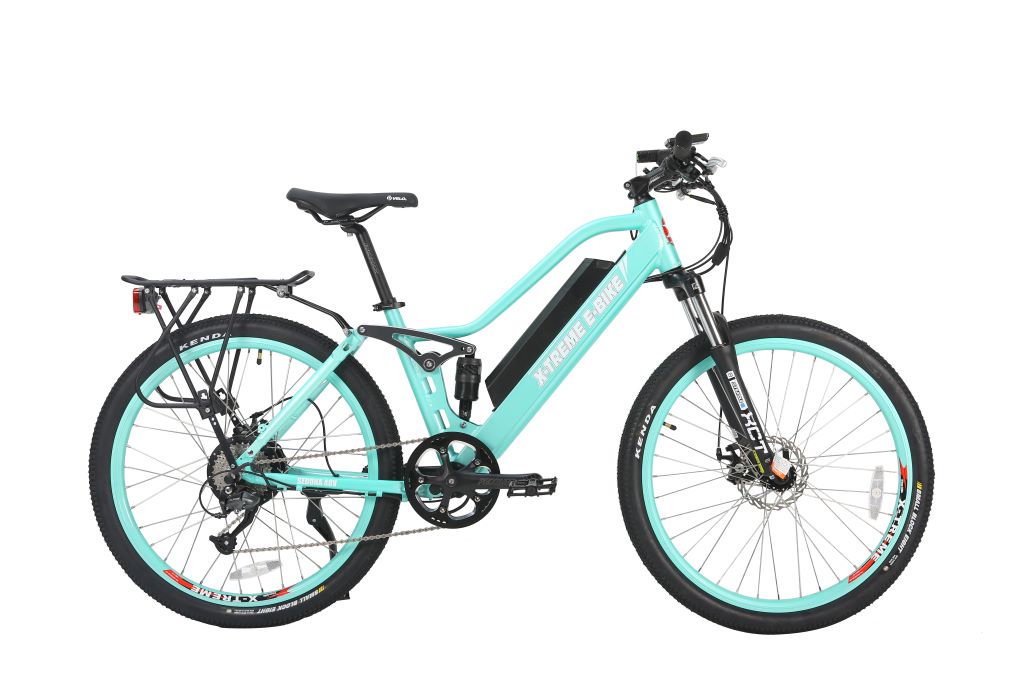

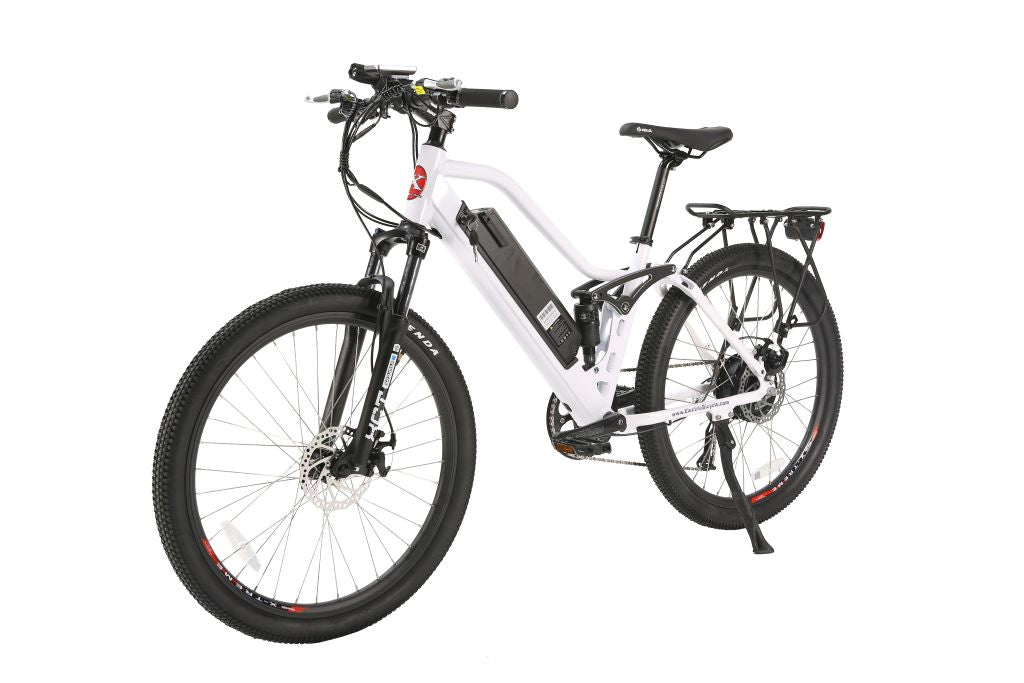

X-Treme Sedona 48 Volt Step-Through Full Suspension Electric Mountain Bicycle

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor with Digital Torque Sensor.

This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36 volt models. This bike comes with everything Aluminum - every bolt, every nut, every nipple, every spoke. That means no rust!

FREE With Purchase:

Rear Pannier Rack & Front/Tail Light Set ($158 value)
Charger ($99 value)
Lifetime Customer Support (Priceless)

The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, Suntour XCT Front Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear.

The Sedona comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port. The electronics of the X-Treme Electric Bicycle are controller via rider input on the LCD screen attached to the handlebars. Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike, because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride. This feature will allow your Sedona 48 Volt to possibly go as far as or exceed 70+ per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a light weight rider. The LCD also indicates Speed, Distance and Battery Life.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell. It has been tested climbing a 5-7% mountain grade continuously for 45 minutes while having to slow down for hair pin turns.

Front & rear Tetko disk brakes are standard on the Sedona 48 Volt Electric Beach Cruiser along with true VELO Brand Hand Grips & Mountain Bike Seat.

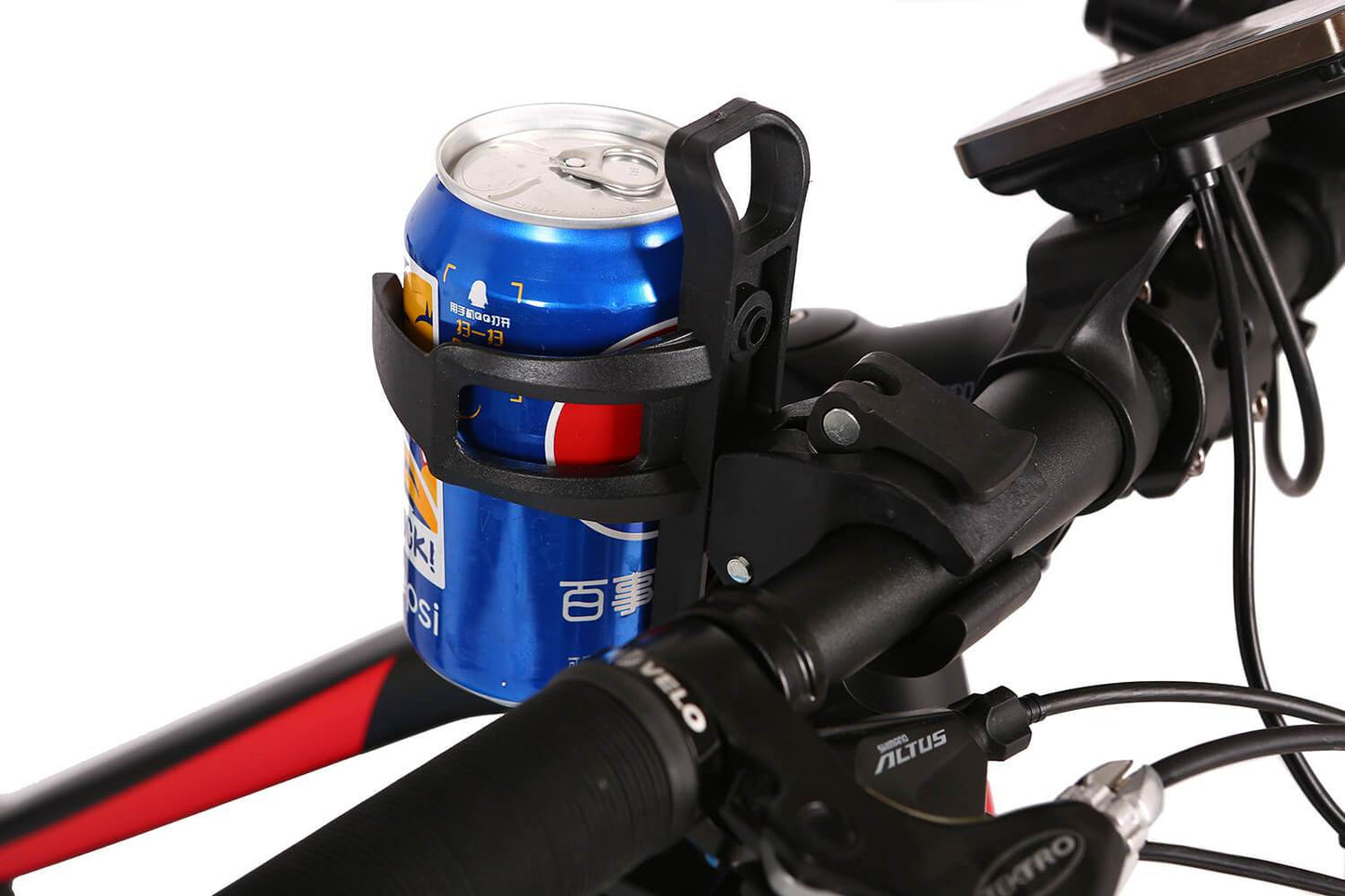

This electric mountain bicycle comes standard with a high quality beverage holder. There is no extra charge!

Sedona Specs:

Measurements: Max Seat Height = 37.75" Inches / Min Seat Height = 29.5" Inches / Handlebar Height = 37.75" Inches

Motor: Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch

Speed TypeThrottle/PAS

Battery: 48V/10.4Ah LiPo4 Lithium (lightweight)

Per Charge: As far as Up To 70 Using Low PAS & Flat Terrain While Pedal Assisting

Recharging Time: 3 hours

Drive System: Chain Driven by Rear Hub Motor or Pedal Power

Throttle Type: Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power

LCD Display: King Meter LCD Smart PAS Digital System With USB Phone Charging Port

Frame: 6061-T6 Temper Aluminum Alloy - Very Lightweight - Step Through

Tires: Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels

Brakes: Front/Rear: Tektro Disk Brakes

Suspension: Front Hydraulic Suspension Included & KS Rear Shock Suspension

Derailleur: Shimano® 9-Speed Atlus Gears & Shifter

Cargo Rack: Aluminum Rear Carry Rack

Weight (with battery): 59.5 lbs.

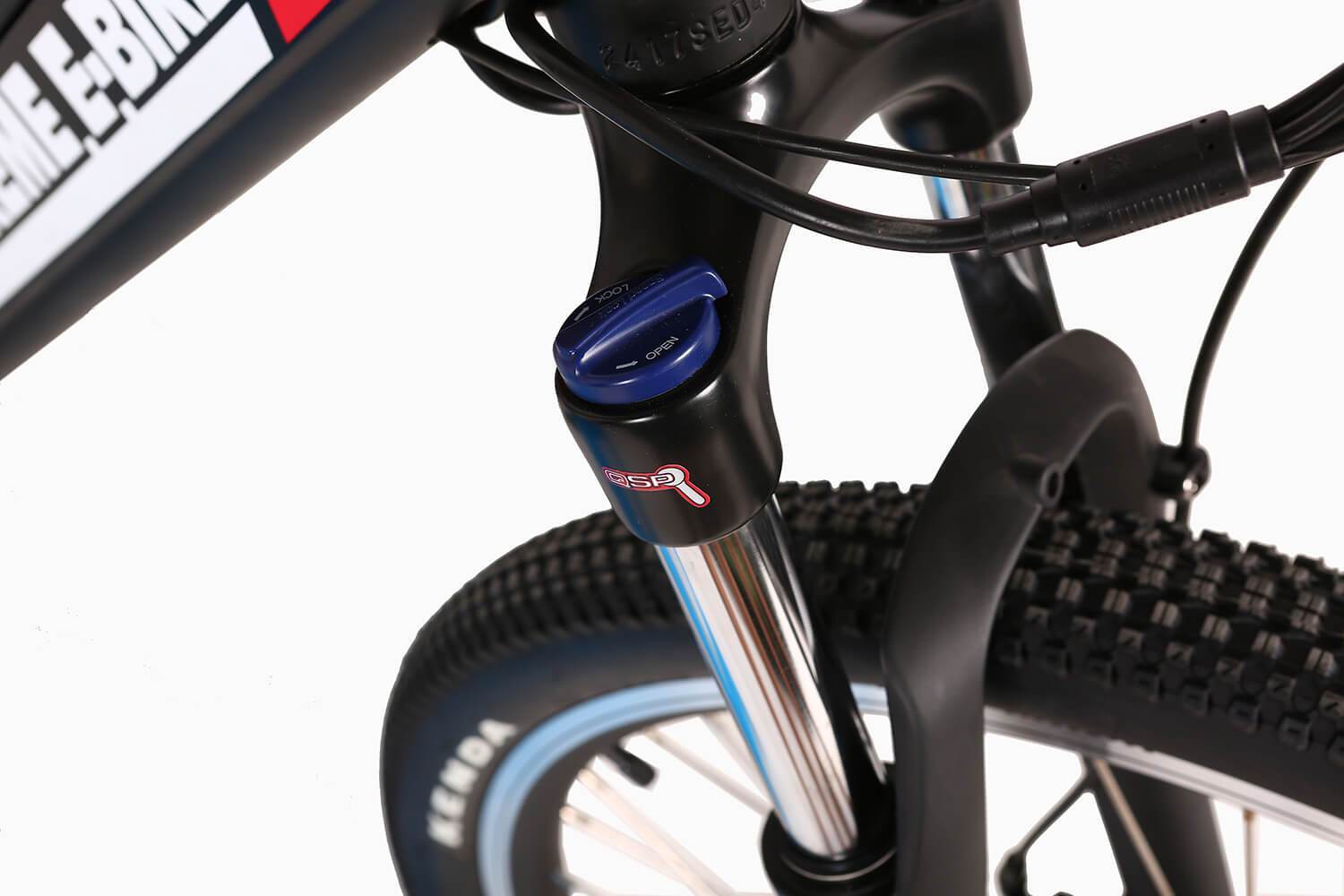

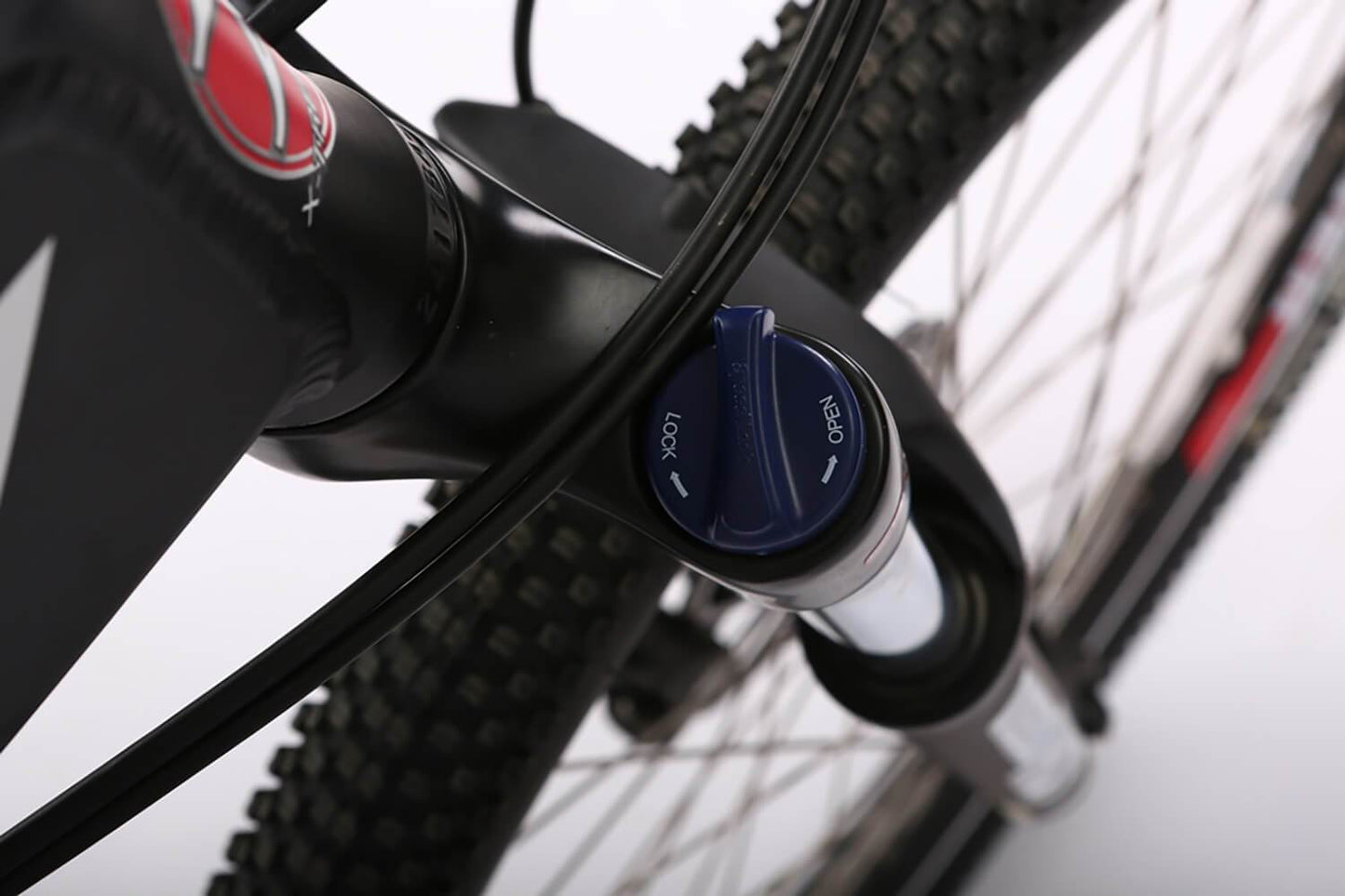

Forks: Suntour® XCT Hydraulic Front Forks

Seat & Post: Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat

Head Light: Yes, included as free accessory add on - Battery Operated Snap-On LED

Load Capacity: 350 lbs

Accessories: Drink Holder On Handle Bars Included

Warranty: 1 Year Warranty & 1 Year Battery Warranty
