Spring Tilt-n-Space Manual Wheelchair - HW1 by EV Rider


A Manual Wheelchair with a Lightweight Aluminum Frame

The EV Rider Spring Tilt-in-Space Wheelchair is a manually operated wheelchair, constructed with a durable aluminum frame and capable of carrying a maximum patient weight of 300 lb. (135 kg). The wheelchair's height-adjustable armrests, backrest, and push-bars enable it to accommodate the preferences of both patients and caregivers.

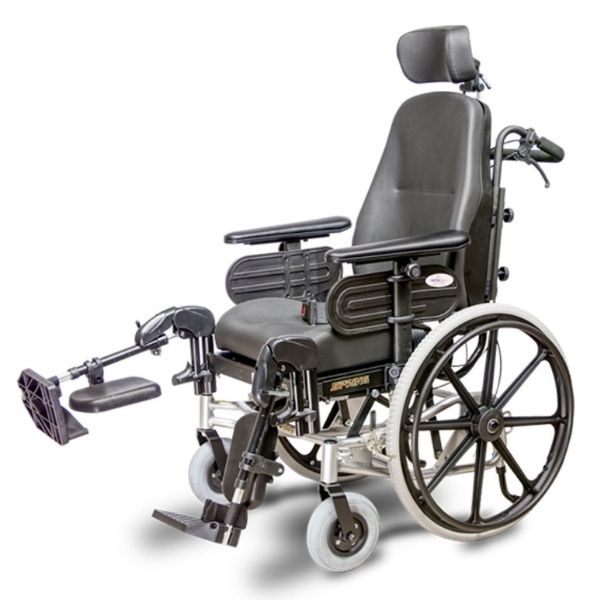

EV Rider Tilt N Space Legrest Elevated


Reclining Functions

However, it is the tilt and recline functionality of the Tilt-n-Space that sets it apart from the standard mobility units.  With a tilt range of -5 to 25 degrees and a recline range of 90 to 120 degrees, it provides comfort and safety to a variety of occupants, including people with developmental or degenerative neuromuscular disorders, patients recovering from spinal cord injuries, among other ailments.

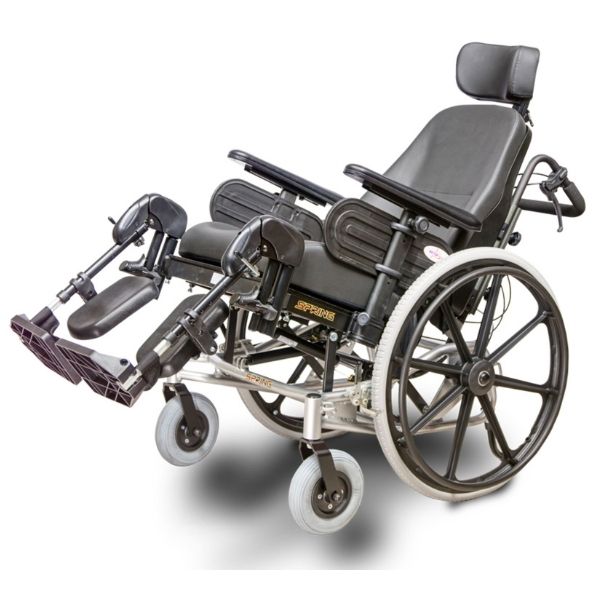

EV Rider Tilt N Space Tiled Back View

Highly Adjustable to Meet Every Need

The ergonomic seat highlights an extendable, height-adjustable and detachable armrest system.  In addition, the rear wheels are available 24", quick-release, and the seat width options are 16", 18", and 22", accommodating various body sizes.  The seat cushion is thick and comfortable.  The front is a little over 3.5" in thickness and it slopes towards the back to a little over 3".

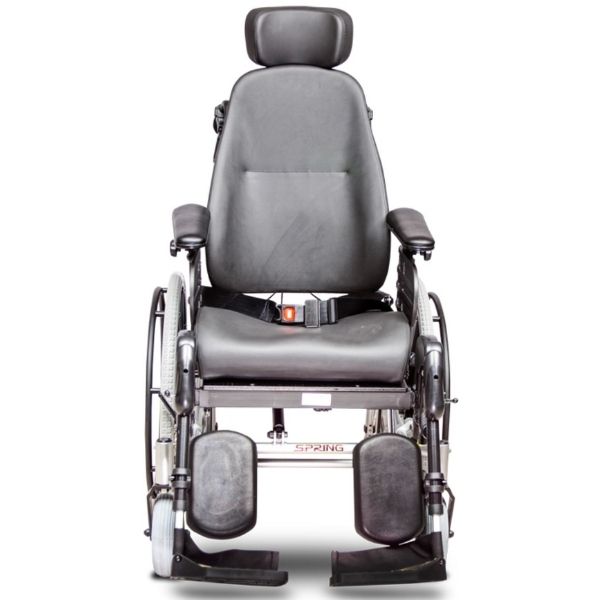

EV Rider Tilt N Space Front Side View


The Durable Choice

This EV Rider wheelchair is a heavy duty transport unit for everyday users.  It includes convenient features such as easy to clean vinyl upholstery, swing away footrests and removable side arms along with flat-free tires for peace of mind.


EV Rider Spring Tilt-n-Space Benefits & Features:

    • Supports up to 300 lbs
    • weighs 84 lbs
    • Available seat widths of 16", 18", and 22"
    • 24" quick release drive wheels
    • Manually operated Tilt N Space
    • Tilts up to 30 degrees
    • Manual seat back reclining
    • 6061 T4 aluminum frame
    • Height adjustable & detachable armrests
    • Elevating swing away leg rests


Weight Capacity 300lbs (135 kgs)
Drive Wheel 24"
Front Caster 8" x 2"
Rear Caster 4"x 1.4" (100 mm x 35 mm)
Weight 84 lbs 18" (38.2 KG)
Length 45" (1150 mm)
Wide 26" (660 mm)/ 27.5" (700 mm) /31.5" (800 mm)
Height 50" ~ 55.8" (1220~ 1420mm)
Seat Width 16"/18"/22"
Seat Height 21" (530 mm)
Seat Depth 18" (458 mm)
Footrest 18" (458 mm)
